DENGE® Container & Pallet Dollies
The units is constructed in conformity with AHM, CE and IATA standarts. The unit is in conformity with TS EN 12312-11 and AHM909/910/913/914/915/916/965 of Airport Handling Manual Edition 35, Effective 01 January 2015. The unit operates within the temperatures between - 15° C / + 50 °C
Introducing Container & Pallet Dollies by DENGE Airport Equipment – the key to efficient cargo handling. Our dollies are designed to seamlessly move containers and pallets with precision and ease. With a focus on safety and durability, DENGE Dollies enhance cargo management while reducing turnaround times. Explore the dollies of the future at DENGE.
DENGE Container Dollies
CD SDL
Carrying Capability: 1xLD3/LD1, 1xLD2
Length With Towbar Open: 3.695 mm
Overall Size (LxWxH): 3100mm x 1.745mm x 1205mm
Turntable: 360º, Locks at each 90º
Length Of Table: 1.890 m
Width Of Table: 1.745 mm
Working Height: 508 ±10 mm, non-adjustable
Max. Payload: 1.680 kg
Rear Hitch: “E” Type, Spring Loaded
CD LD8
Carrying Capability: 1xLD3/LD1, 2xLD2, 1xLD4, 1XLD8
Length With Towbar Open: 4320 mm
Overall Size (LxWxH): 3400mm x 1640mm x 1900mm
Turntable: 360º, Locks at each 90º
Length Of Table: 2.800 m
Width Of Table: 1.750 mm
Working Height: 508 ±10 mm, non-adjustable
Max. Payload: 2.500 kg
Rear Hitch: “E” Type, Spring Loaded

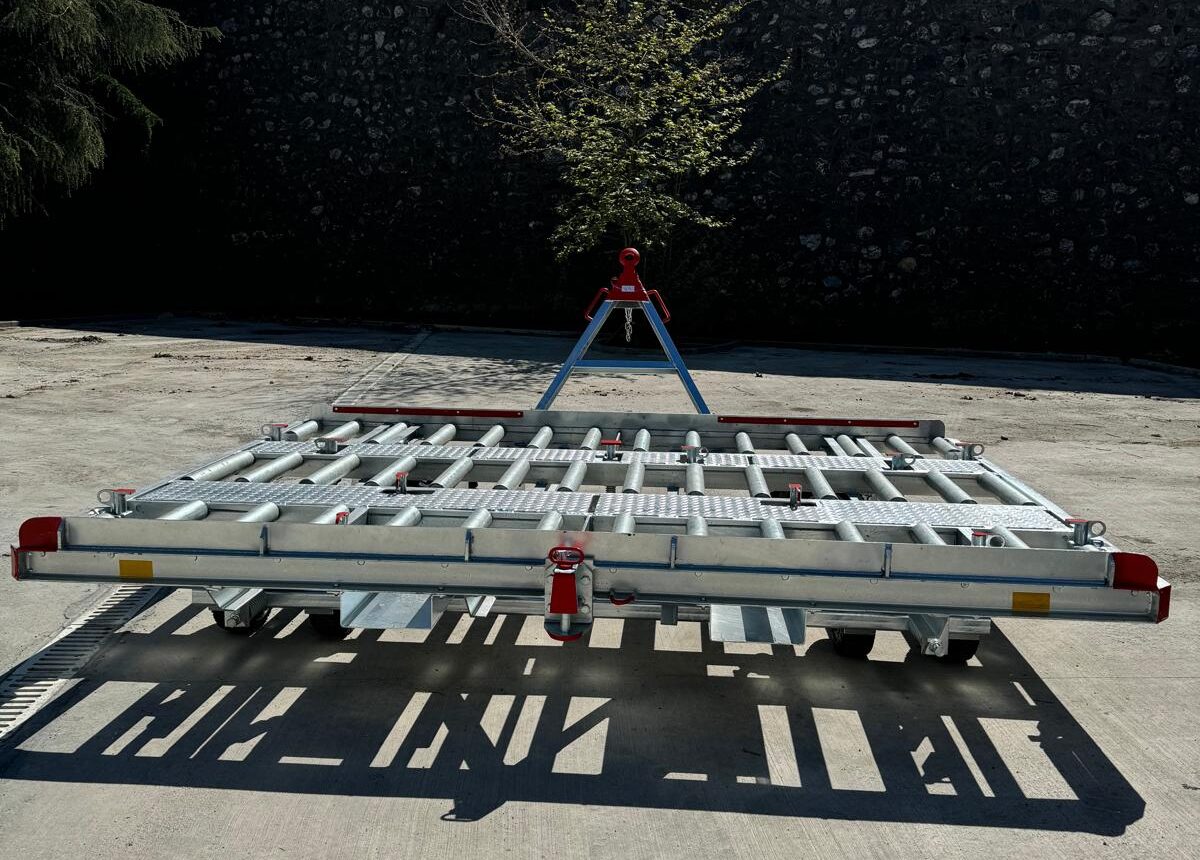

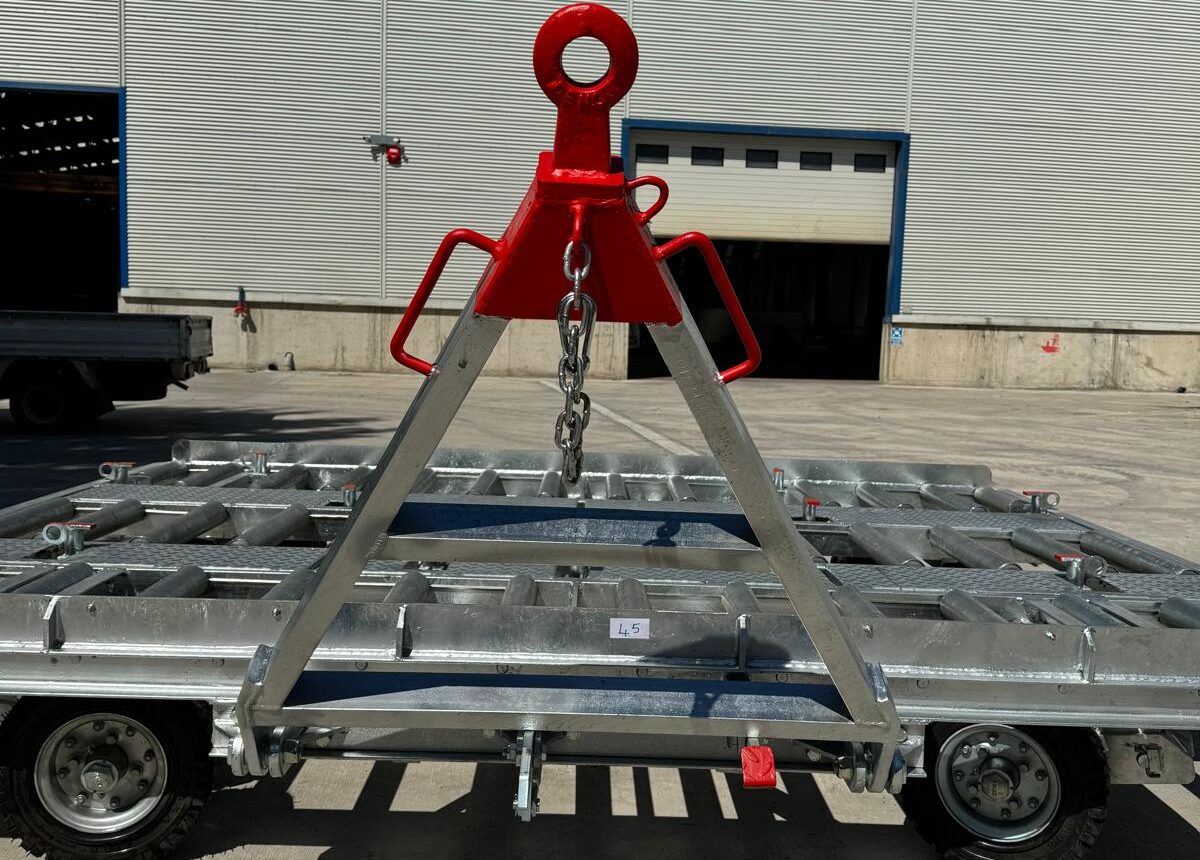

DENGE Pallet Dollies
PD1F2R
Carrying Capability: 96”x125”, 88”x125”
Roller Row Number: 2 Rows
Chassis Length: 2575mm
Chassis Width: 3390mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 25 km/h
Max. Payload: 6800kg
Rear Hitch: “E” Type, Spring Loaded
PD1F2RC
Carrying Capability: 96”x125”, 88”x125””, 60.4”x96”, 60.4”x61.5”(2xLD1,LD3)
Roller Row Number: 2 Rows
Chassis Length: 2575mm
Chassis Width: 3390mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 25 km/h
Max. Payload: 6800kg
Rear Hitch: “E” Type, Spring Loaded
PD1F3R
Carrying Capability: 96”x125”, 88”x125”
Carrying Capability Optional: 60,4"x125" (LD6), 60,4"x96" (LD4, LD8), 60,4"x61,5"(LD1,LD3), 60,4"x47" (LD2), 60,4"x61,5" (AKH), 88"x108", 96"x108"
Roller Row Number: 3 Rows
Chassis Length: 2560mm
Chassis Width: 3390mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 25 km/h
Max. Payload: 6800kg
Rear Hitch: “E” Type, Spring Loaded
PD1F4R
Carrying Capability: 96”x125”, 88”x125”
Carrying Capability Optional:
OPTIONAL 1: 125"x60,4"(LD6), 60,4"x96"(LD4, LD8), 60,4"x61,5" (LD1, LD3), 47"x60,5" (LD2)
OPTIONAL 2: 2x 60,4"x61,5" (AKH),61.5”x96”
Roller Row Number: 4 Rows
Chassis Length: 2685mm
Chassis Width: 3370mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 25 km/h
Max. Payload: 6800kg
Rear Hitch: “E” Type, Spring Loaded
PD1FTT
Carrying Capability: 125”x96”, 60,4”x61,5” (2xLD1/LD3), 60,4”x96” (LD4/LD8)
Carrying Capability Optional:
60,4"x96"(LD4, LD8), 60,4”x125” (LD6), 47”x60,5” (LD2)
Roller Row Number: 4 Rows
Chassis Length: 2700mm
Chassis Width: 3550mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 25 km/h
Max. Payload: 6800 kg
Rear Hitch: “E” Type, Spring Loaded
PD2F14
Carrying Capability:
238.5’’x96’’x 1 ea. (1 x 20 ft pallet)
125”x96” x 2 ea. (2 x 10 ft pallet),
Roller Row Number: 2 Rows
Chassis Length: 6645mm
Chassis Width: 2640mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 10 km/h
Max. Payload: 14000kg
Rear Hitch: “E” Type, Spring Loaded
PD2F20
Carrying Capability:
238.5’’x96’’x 1 ea. (1 x 20 ft pallet)
125”x96” x 2 ea. (2 x 10 ft pallet)
Roller Row Number: 2 Rows
Chassis Length: 6645mm
Chassis Width: 2640mm
Height Over Roller: ~ 510+8mm
Max.Towing Speed: 6 km/h
Max. Payload: 20000kg
Rear Hitch: “E” Type, Spring Loaded
